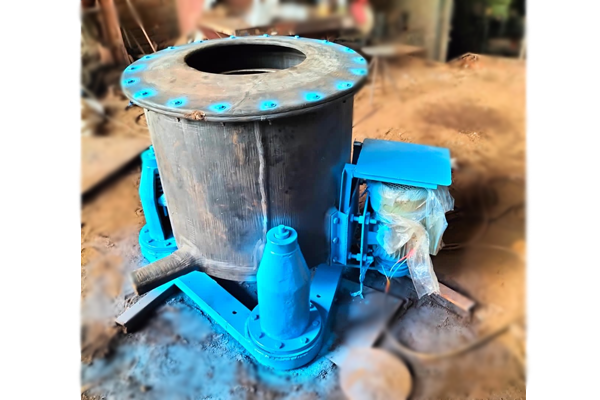

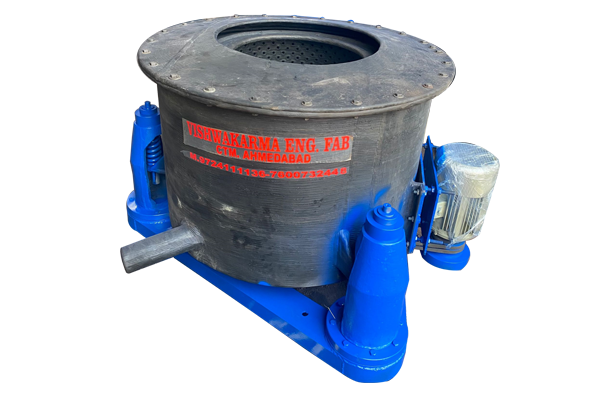

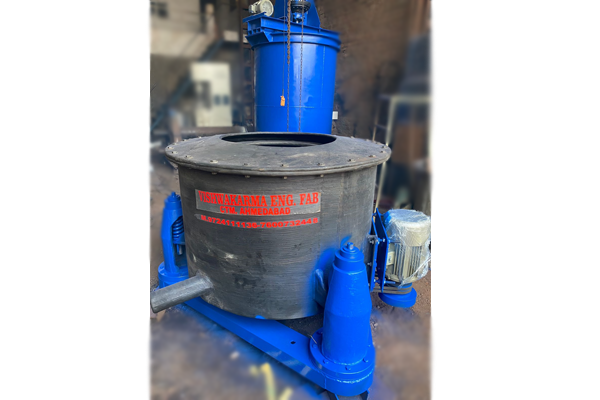

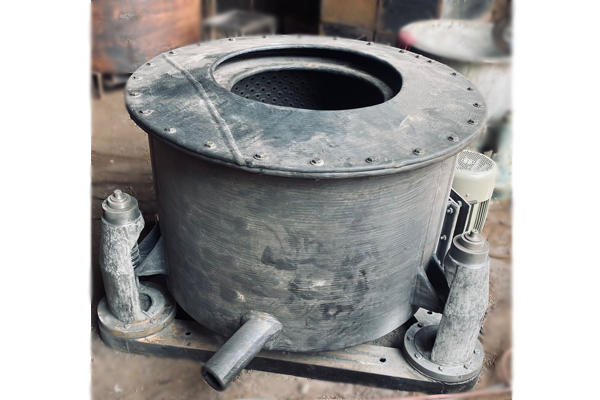

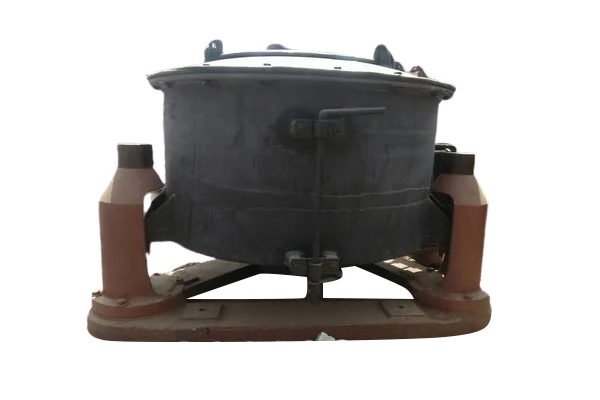

We offer a superlative range of Centrifuge Basket Rubber Lining, which is used for corrosive & acidic applications in industries such as chemical, dyes, pigment, pesticides, intermediates and others. Made from high-grade raw material & it is dynamically balanced pre and after the Rubber Lining.
It is very important to understand the job requirement as the centrifuges are rotating parts and hence required hard rubber lining like "Ebonite". Our team takes an extra precautions for the equipment’s to be rubber lined. We offer for rubber lining for centrifuge's Size: - 24" to 60"
MODEL | BASKET DIA | BASKET HT | BASKET SPEED RPM | BASKET CAPCITY | MOTOR H.P |
---|---|---|---|---|---|
VEF 12 | 305 | 175 | 1200 - 1400 | 15 – 20 | 1 |
VEF 24 | 610 | 325 | 1000 - 1200 | 40 - 60 | 3 |
VEF 36 | 915 | 470 | 900 - 1000 | 100 - 125 | 5/7.5 |
VEF 48 | 1225 | 470 | 800 - 850 | 200 - 250 | 12.5/15 |
VEF 60 | 1524 | 550 | 700 - 800 | 350 - 450 | 20/25 |
