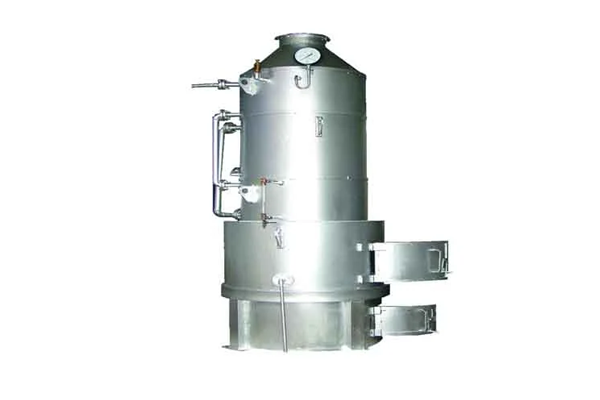

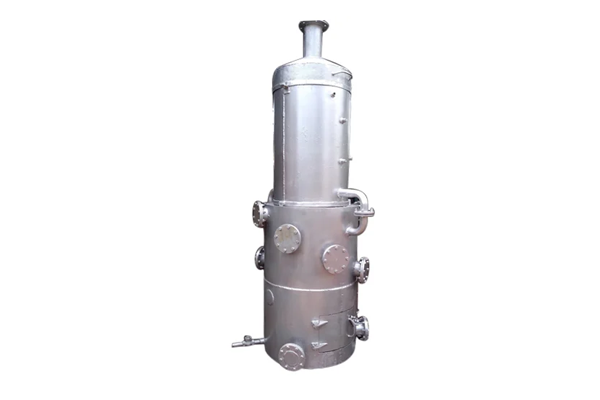

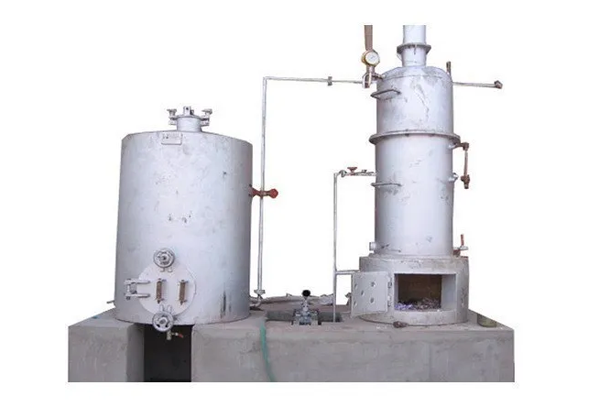

Vishwakarma fir tube boiler are principally baby boiler and exempted from IBR act (Non IBR) used in pharmaceuticals Rubber Cures and Moulders, Chemical Processors, Diaries, Laboratories and Hospital etc. those who require the steam ranges from 100 to 600 kg/hr. from and at 100‘C and working pressure up to 7kg/Sq.Cm
Boiler with higher working pressure up to 10.5 Kg. Sq.cm. and semi-automatic type are also available in the above steam evaporation capacity.
| MODEL | KG/HR | VEF 100 | VEF 200 | VEF 300 | VEF 400 | VEF 500 | VEF 600 |
|---|---|---|---|---|---|---|---|
| Evaporation Cap. | Kg/Hr. | 100 | 200 | 300 | 400 | 500 | 600 |
| Working Pressure | Kg/Cm2 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 |
| Heating Surface Area | Sq. Mt | 3.67 | 5.96 | 7.33 | 9.14 | 10.50 | 12.40 |
| Oil Consumption (L.D.O) | Lts/Hr. | 7.2 | 14.5 | 22 | 28.2 | 35.8 | 42.8 |
| Coal Consumption | Kg/Hr. | 16 | 24 | 34 | 54 | 65 | 80 |
| Fuel Cut Let | Mm Dia | 200 | 225 | 225 | 250 | 275 | 300 |
| Water Feed Pump | HP | 2 | 2 | 2 | 3 | 5 | 5 |
| Air Blower | HP | 1 | 1 | 2 | 2 | 2 | 3 |
| Over all Dimensions | Mt | 2X2X2 | 2X2X2.4 | 2.2XX2.2.3 | 2.5X2.5X3 | 2.5X2.5X3.2 | 2.5X2.5X3.2 |
