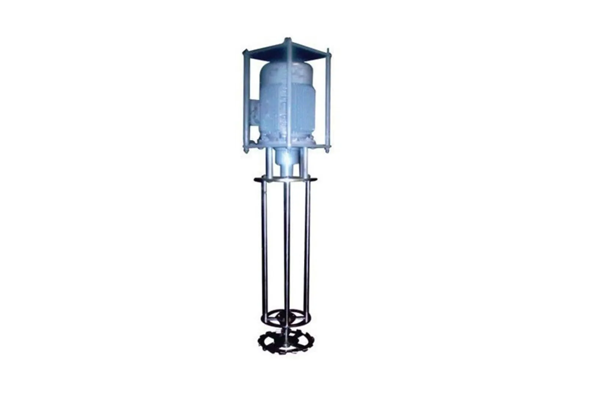

All contact parts will comprise of S.S 304 material. It will have a protecting cage with two 20 mm bar held apart by closing flat ring clamping on to the bar. The shaft will be coupled directly to the motor shaft. An extra bearing on the coupling sleeve will be provided to reduce the load on the motor bearing. lt will consist of an impeller of special design.
Dispersers widely used in the chemical production to blend and mix liquid with solid or liquid with liquid. It is suitable for all the premixing, ready mixing, dissolving.
Applicable for Paint, Ink, Pigment, Color paste, paper making, resin, food, Pharmaceutical Product, Chemical , Cosmetics beverage...etc.
* Varnishes & Paints * Polyurethanes * Colorants * Inks * Foods * Resins, Glues, Adhesives * Pharmaceutical Products * Chemicals * Lacquers * Cosmetics
| TYPE | H.P.THREE PHASE | MIXING LENGTH IN MM | IMPELLER DIA MM | CAPACITY IN LTS VISCOCITY | ||
|---|---|---|---|---|---|---|
| 1440 | 2880 | |||||
| R.P.M | LOW | High | ||||
| VEF 1 | 1 | 915 | 125 | 90 | 100 | 20 |
| VEF 2 | 2 | 915 | 125 | 100 | 150 | 40 |
| VEF 3 | 3 | 915 | 150 | 100 | 250 | 50 |
| VEF 5 | 5 | 915 | 150 | 125 | 350 | 100 |
| VEF 7.5 | 7.5 | 1080 | 175 | 150 | 600 | 150 |
| VEF 1 0 | 10 | 1080 | 225 | 150 | 1000 | 200 |
| VEF 1 5 | 15 | 1080 | 225 | 175 | 1250 | 250 |
| VEF 20 | 20 | 1350 | 250 | 200 | 1500 | 300 |
| VEF 25 | 25 | 1350 | 300 | 225 | 2000 | 400 |
| VEF 30 | 30 | 1350 | 300 | 325 | 2500 | 500 |
