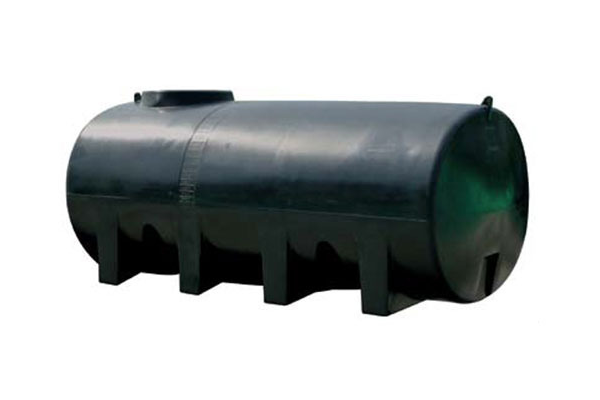

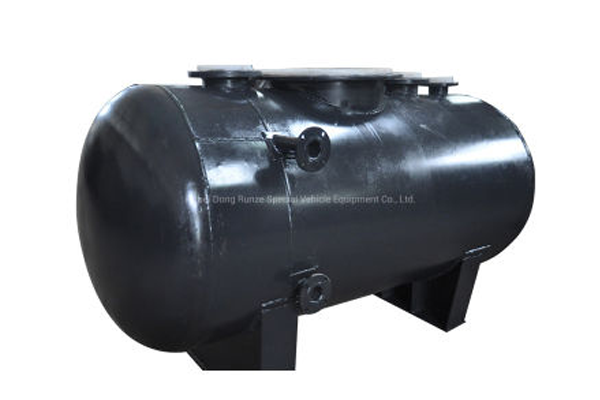

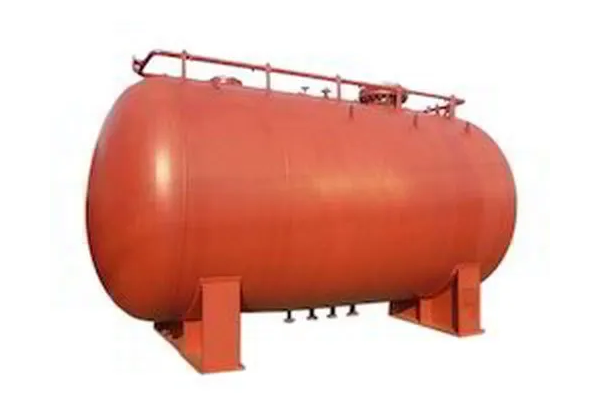

VISHWAKARMA ACID STORAGE TANK

We had designed, manufactured Acid Storage Tank. To our Reputed Customer.

• Type of Tank: Acid Storage Tank
• Working Capacity: 20000 Ltr. *(We Do 50 liter to 1 lac Litre Tank)
• Tank Shape: - Round (We Do Round, Both Side Dish End, Rectangular)
• Type of Mounting: - Horizontal
• Working Pressure inside Tank: Atmospherically
• Saddle: - Ms With Painted
• Level Indicator: - Measure Level Filling in Tank /
• Tank Use For: - Acid Storage / Sulphuric acid / h2So4 acid / Nitric acid.
• Moc: - Mild Steel with Rubber lining (Msrl), Aluminium, Nozzles Connections in Tank

• Man Hole Connection- 400 NB x 150 #, Flange End With Blind Flange X 2 NOS
• Raw Material Inlet Connection - 50 NB x 150 #, Flange End
• Product Outlet Connection- - 80 NB x 150 #, Flange End
• level Gauge Connection- 15 NB x 150 #, Flange End
• Air Vent Connection-40 NB x 150 #, Flange End
• Spare Connection- 25 NB x 150 #, Flange End
• All Connection SS 304 (also We SS 304 , ss 316 ,Ms , Ms + SS Cladding )
• As Per Customer Requirement we change IN Connection size and Orientation
